Inner and Outer Walls of Steel Pipes

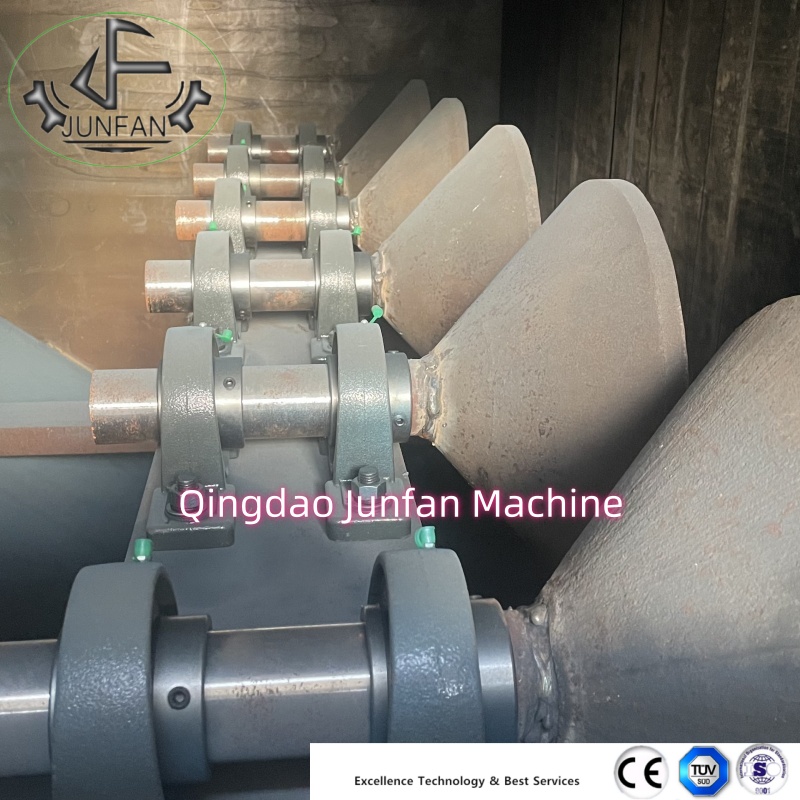

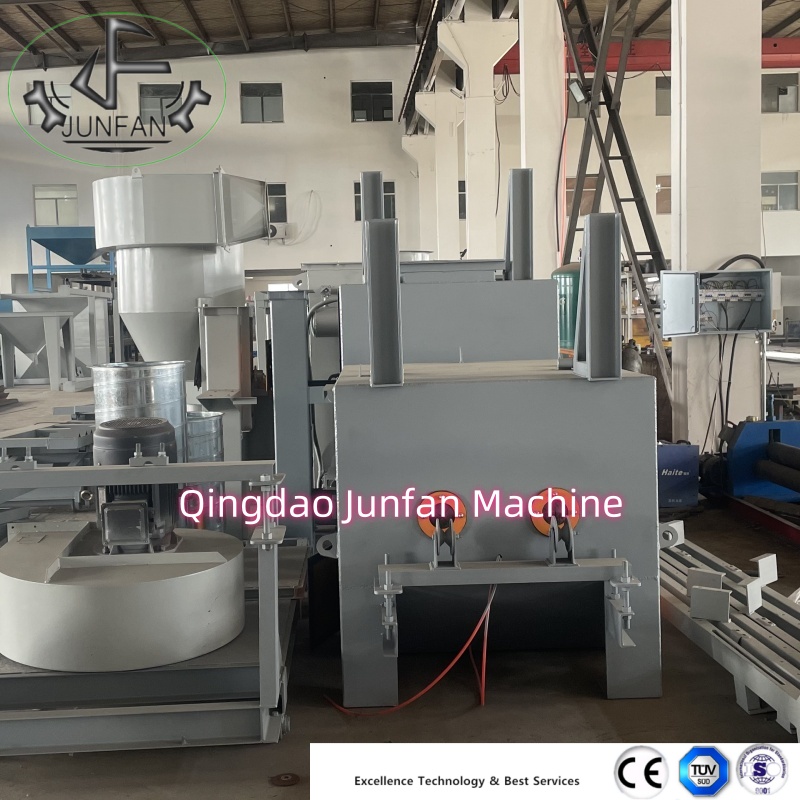

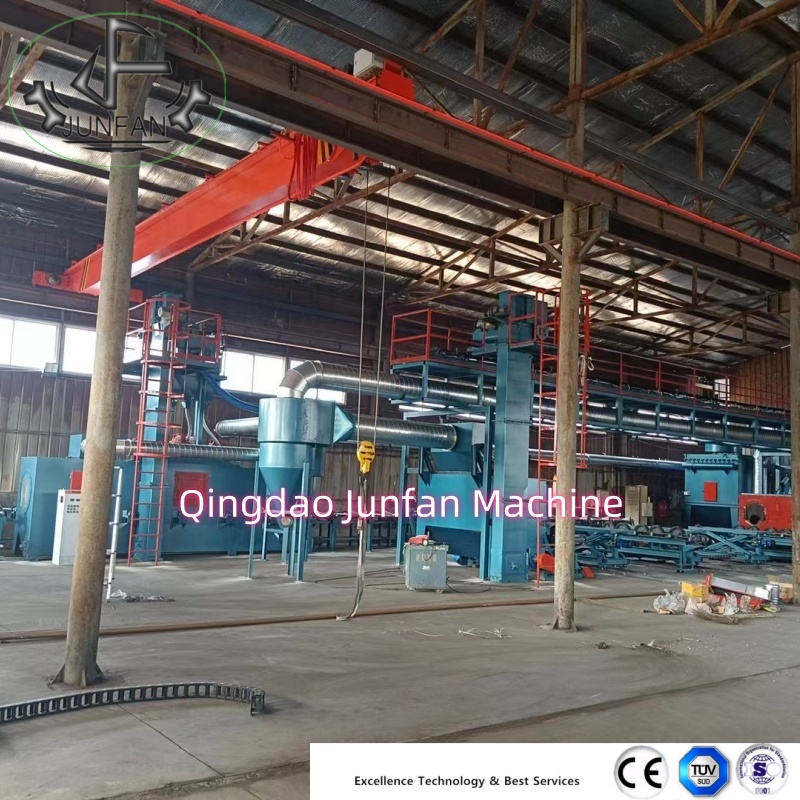

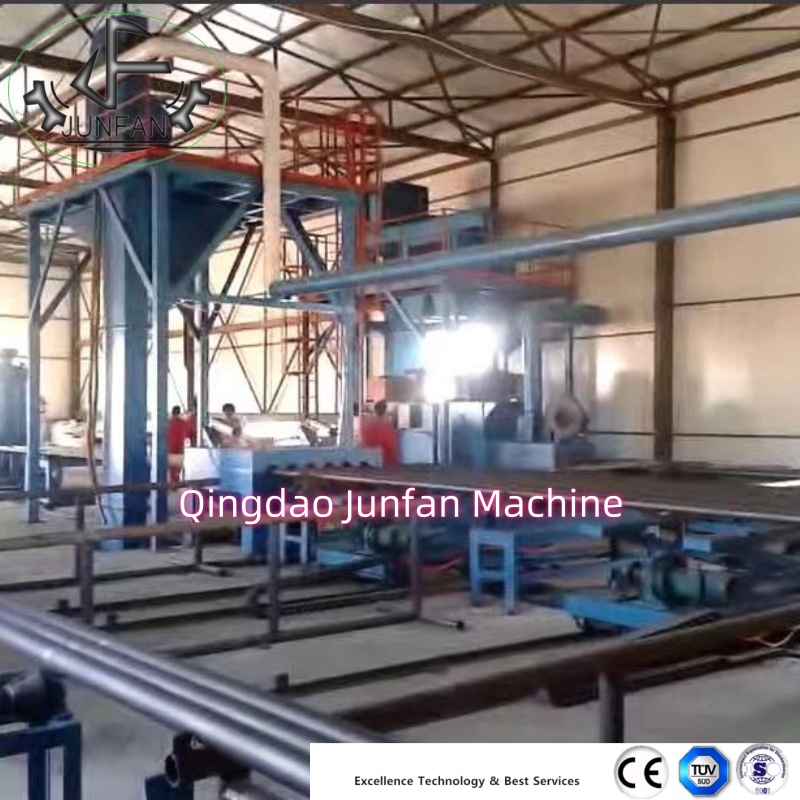

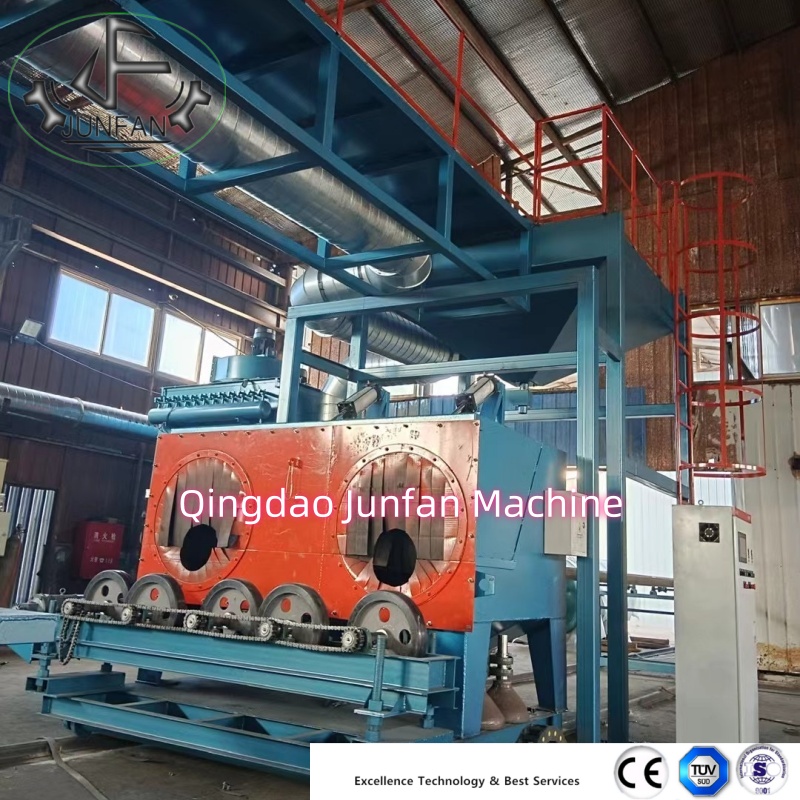

Steel Pipe Inner and Outer Wall Shot Blasting Machine is a combined cleaning machine designed to clean both the inner and outer walls of steel pipes. It uses shot blasting to clean the outer surface and shot peening to clean the inner surface, effectively removing the oxide scale. The steel pipe shot blasting machine primarily utilizes a high-efficiency and powerful shot blaster to project a high-speed stream of shot onto the rotating workpiece inside the chamber, removing adhered sand, rust layers, welding slag, oxide scale, and other debris. This process results in a fine and smooth surface. It enhances the adhesion of the paint film to the steel surface, improves the fatigue strength and corrosion resistance of the steel, enhances the internal quality of the steel, and extends its service life.

Technical Parameters
  Control Unit JF-GW100 JF-GW150 JF-GW200 JF-GW250 FJ-GW300 JF-GW1400
Size of the
Workpiece to Clean
mm Ø 30*100 Ø 50*150 Ø 50*200 Ø 50*250 Ø 50*300 Ø 150*1400
Abrasive Consumption kg/min 2*250 2*250 2*250 2*250 2*1000 2*1000
Load Capacity kg/min 30000 30000 30000 30000 30000 1200000
Throughput Capacity kg/min 30000 30000 30000 30000 30000 1200000
Ventilation Capacity 5000 5000 5000 6000 6000 10000
Power Supply kw 50 50 50 50 50 115
