all kinds steel pipes cleaning machine

Main Products

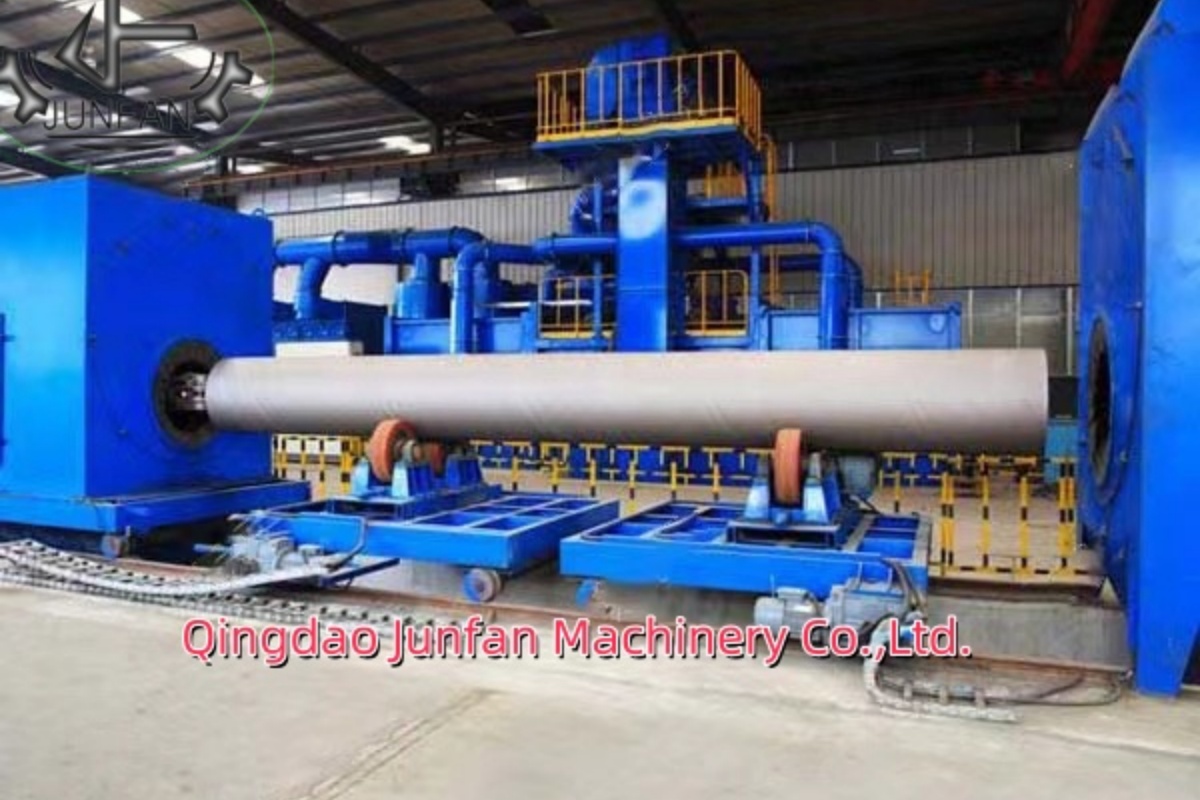

steel pipe inner and outer wall cleaning machine

Steel pipe outer wall shot blasting machine is a specialized equipment for cleaning the outer wall of the steel pipe, through the high-speed rotation of the shot blasting machine will be projected onto the surface of the steel pipe, effectively removing oxidation, rust, oil and other impurities, so that the surface of the steel pipe to show the original color of the metal, to improve its corrosion resistance and surface quality!

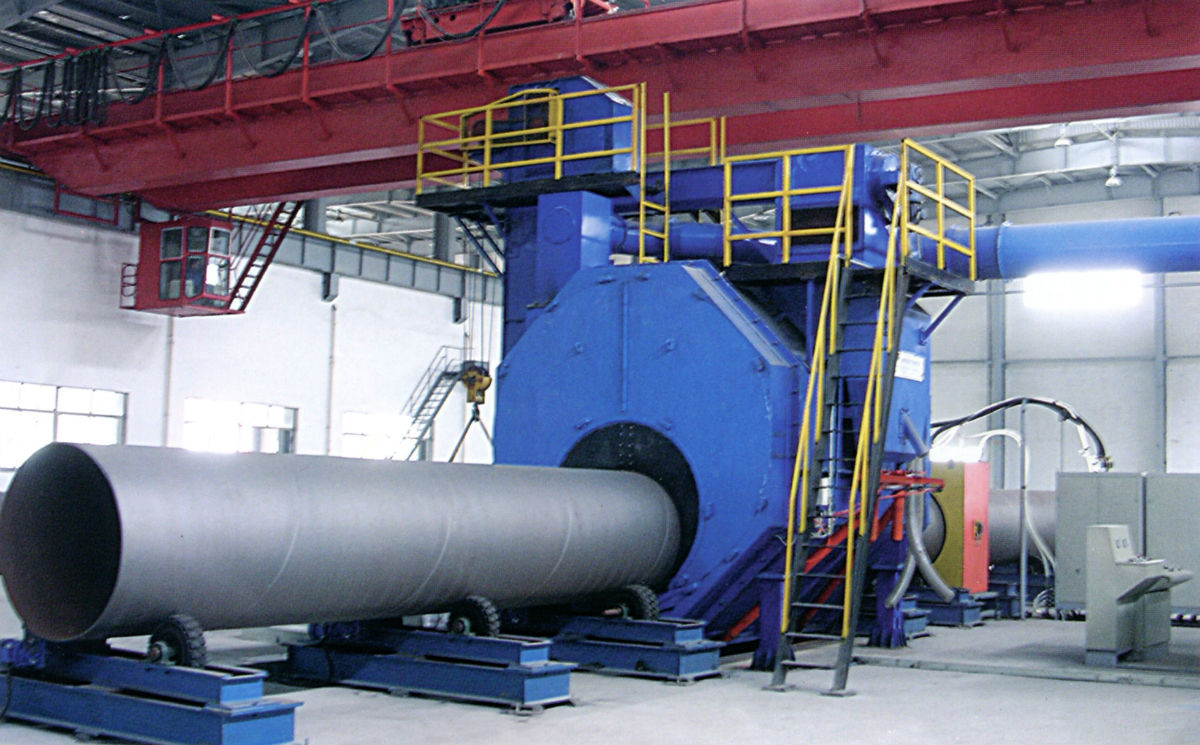

steel pipe inner and outer wall cleaning machine

Working Principle
Shot blasting machine utilizes the centrifugal force generated by the high-speed rotation of the shot blasting machine to accelerate the shot blasting to the outer wall of the steel pipe to clean the surface through the impact and friction of the shot blasting.

Component structure
- cleaning chamber: contains the turbines, is the core component of shot blasting cleaning.
- Shot recycling and purification system: consists of elevator, separator, screw conveyor, etc., to realize the recycling and purification of shot 45.

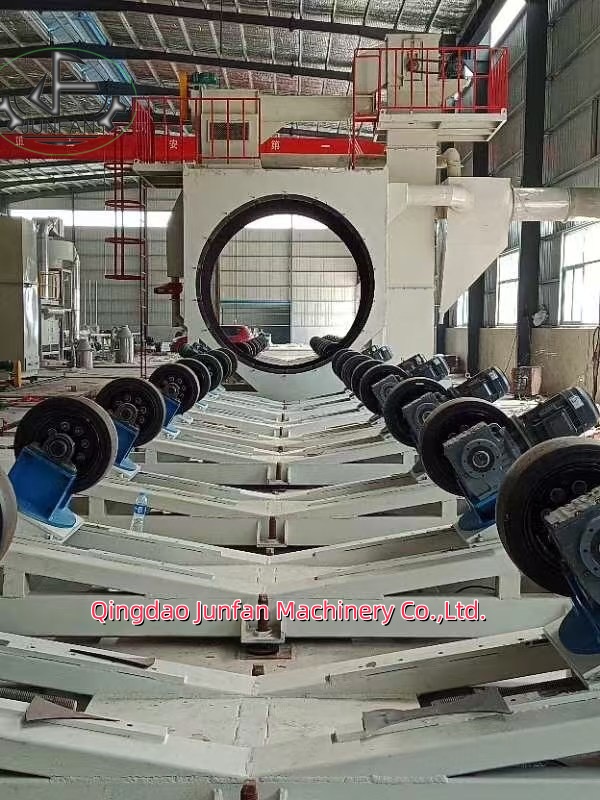

- Workpiece conveying device: such as roller conveyor, responsible for steel pipe conveying and positioning.
- Dust removal system: collects the dust generated in the cleaning process and purifies the working environment.

- Electrical control system: control the operation of the equipment and various operations.

Features
- Good cleaning effect: it can completely remove all kinds of adherents on the surface of steel pipe and improve the surface quality.
- Wide range of application: applicable to steel pipes of different diameters, widely used in petrochemical, iron and steel, heating, water supply and drainage industries.
- High efficiency and energy saving: adopting high-efficiency shot blasting machine and shot recycling system to improve cleaning efficiency and save energy.
- Environmental protection: equipped with dust removal system to reduce dust emission, in line with environmental requirements.

- High degree of automation: PLC electrical control is adopted to realize automatic operation and improve production efficiency.

Technical Parameters

Different models of steel pipe wall shot blasting machine in the cleaning workpiece size, shot blasting volume, power and other aspects of the difference, the user can choose the appropriate equipment according to demand.

Model

QGW20-50

QGW80-150

QGW200-500

Pipe diameter

30-500

250-1500

2000-5000mm

Turbine

Top

bottom
