Product

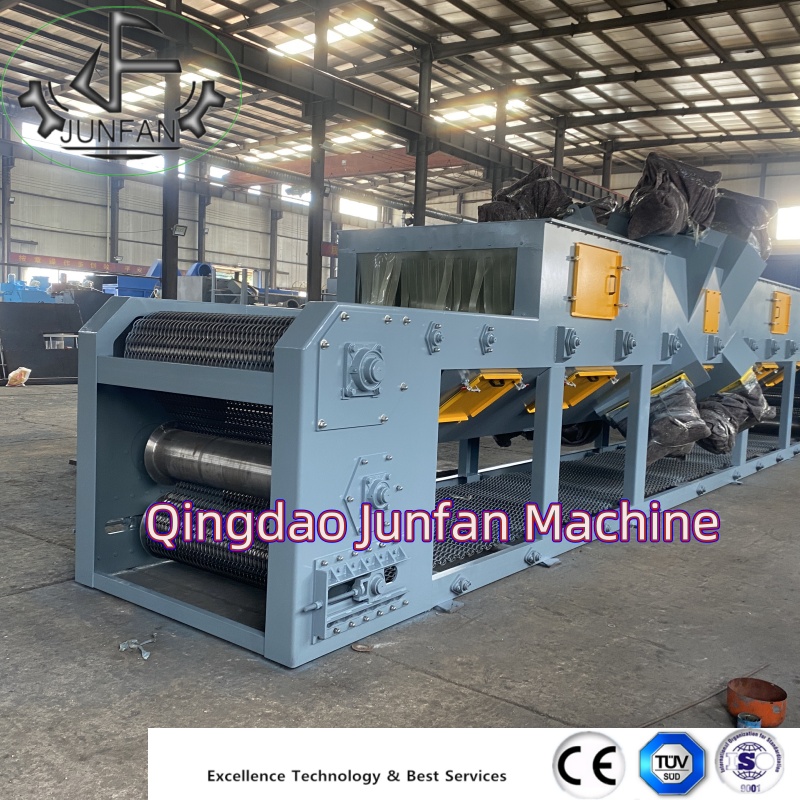

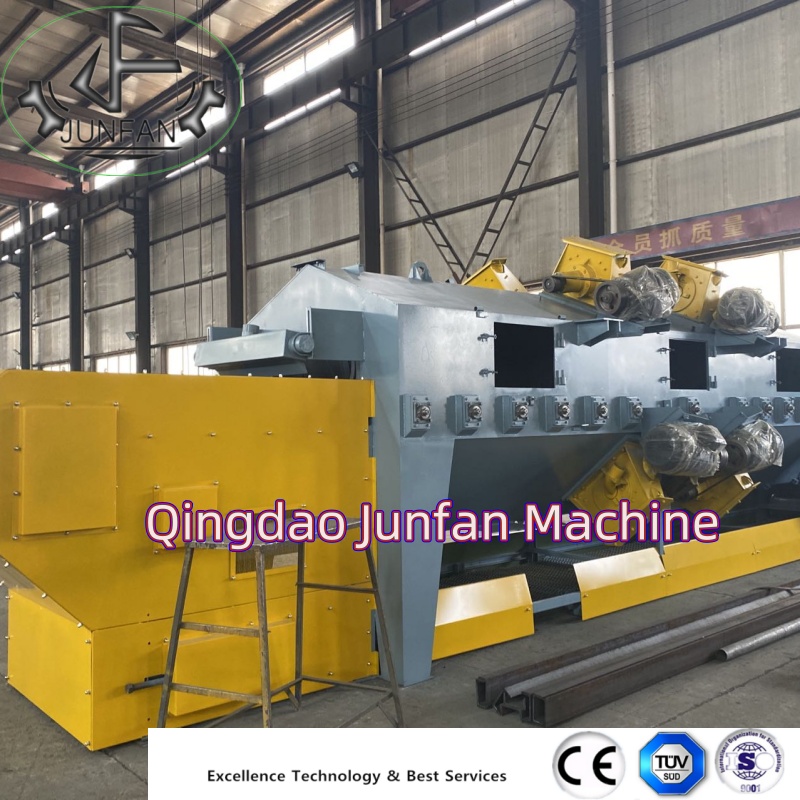

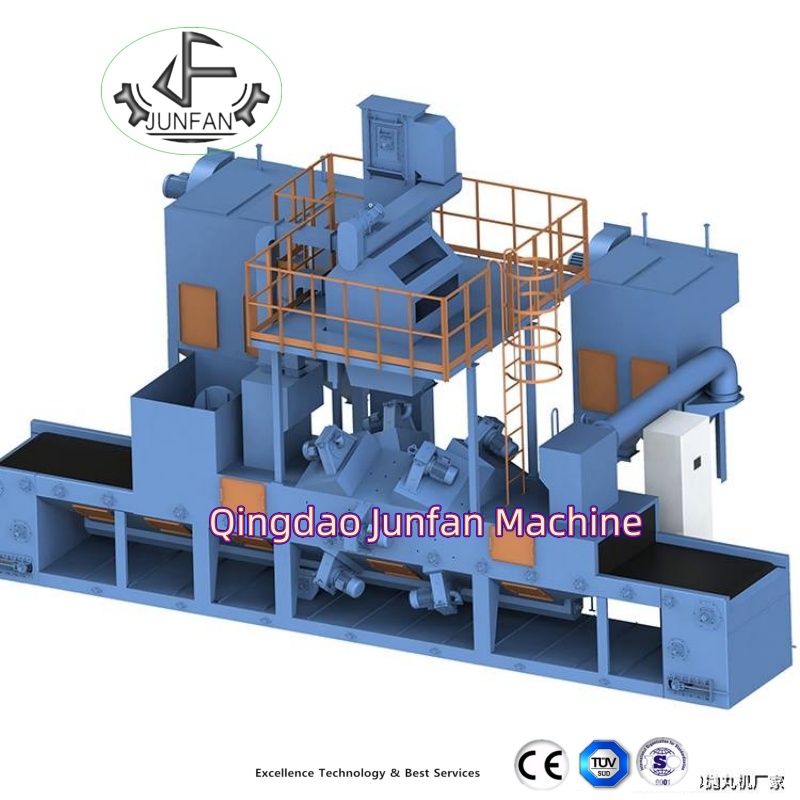

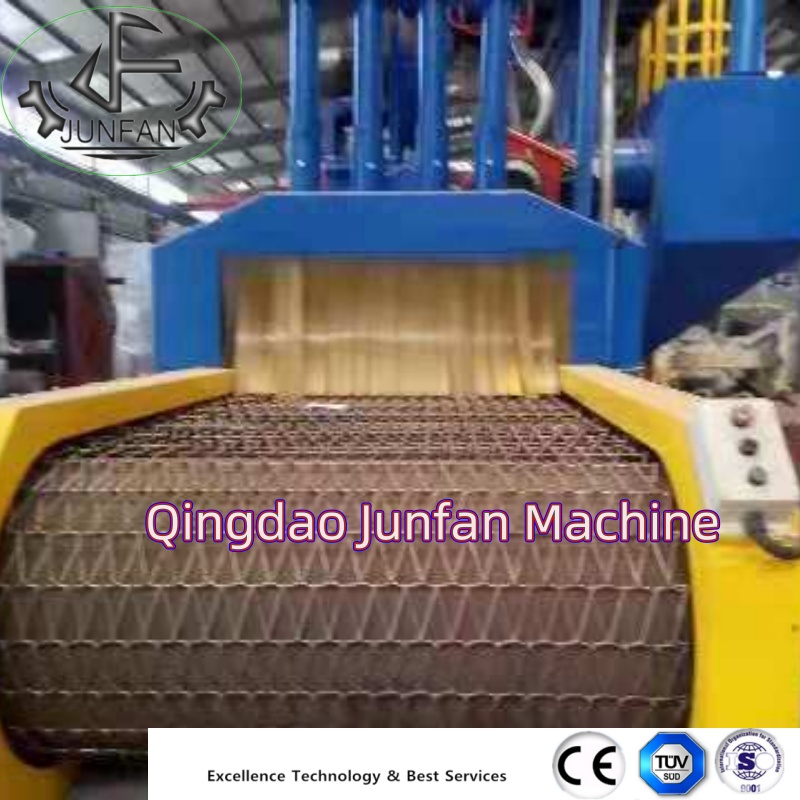

Mesh Belt Shot Blasting Machine



The **Mesh Belt Shot Blasting Machine** is widely used for cleaning large or delicate workpieces such as forgings, steel castings, and aluminum castings that are unsuitable for processing in drum or crawler-type shot blasting machines. This equipment can be easily integrated into automated conveyor systems and is capable of rapidly processing large quantities of workpieces. As the workpieces pass through the machine, both their upper and lower surfaces are simultaneously subjected to shot blasting for thorough cleaning.

Technical Parameters
Item

JF-WD600

JF-WD800

JF-WD1000

JF-WD1200

JF-WD1600

Effective Cleaning Width (mm)

600

800

1000

1200

1500

Inlet Size (mm)

600*400

800*500

1000*500

1200*600

1500*600

Number of Wheels

4

4

4/8

4/8

4/8

Wheel Motor Power (kw)

7.5

11

11/15

11/15

11/15

Base No No No No Yes
Weight (T)

20

20.4

33

41

53.2
