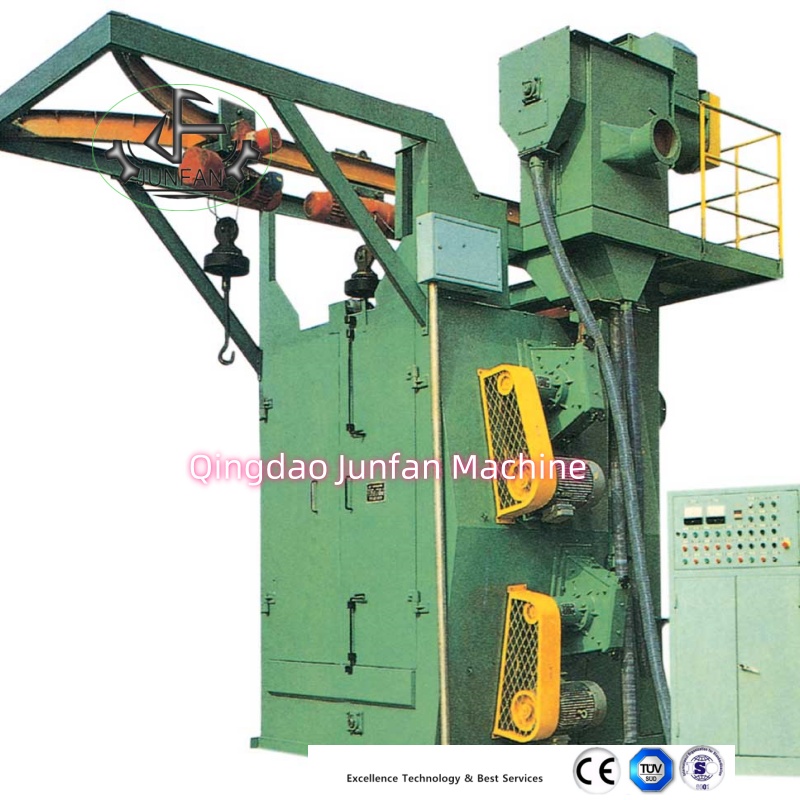

Hook-Type Shot Blasting Machine

Mainly suitable for surface treatment of various medium and large castings, forgings, welded parts, and heat-treated components, including fragile and irregularly shaped workpieces. The hook-type shot blasting machine is ideal for surface cleaning or strengthening of small and medium-sized castings and forgings in industries such as foundry, construction, chemical, electrical machinery, and machine tools. It is particularly well-suited for surface cleaning and shot peening strengthening of multi-variety, small-batch castings, forgings, and steel structural components to remove minor adhered sand, sand cores, and scale from the workpiece surface. It is also suitable for surface cleaning and strengthening of heat-treated parts, especially for the cleaning of slender and thin-walled components that are prone to damage from impact.

Technical Parameters

	Q376	Q378	Q3710	Q3720	Q3730	Q3750	Q3780
Hook Load (kg)	500	1000	1000	2000	3000	5000	8000
Maximum Part Size (mm)	ф600*1100	Ф800*1500	Ф900*1600	Ф1400*2300	Ф1600*2300	Ф1800*2500	2000*3000
Number of Turbines	2	2	2	3	3	4	4
Ventilation (m³/h)	5000	8000	9000	15000	15000	18000	20000
Power (kW)	19	32.5	36.55	61.27	64.4	78.4	81.5
Dimensions (L×W×H) (mm)	442928503443	432526605009	504738505156	611035997842	708546508652	706254608652	805064008526
